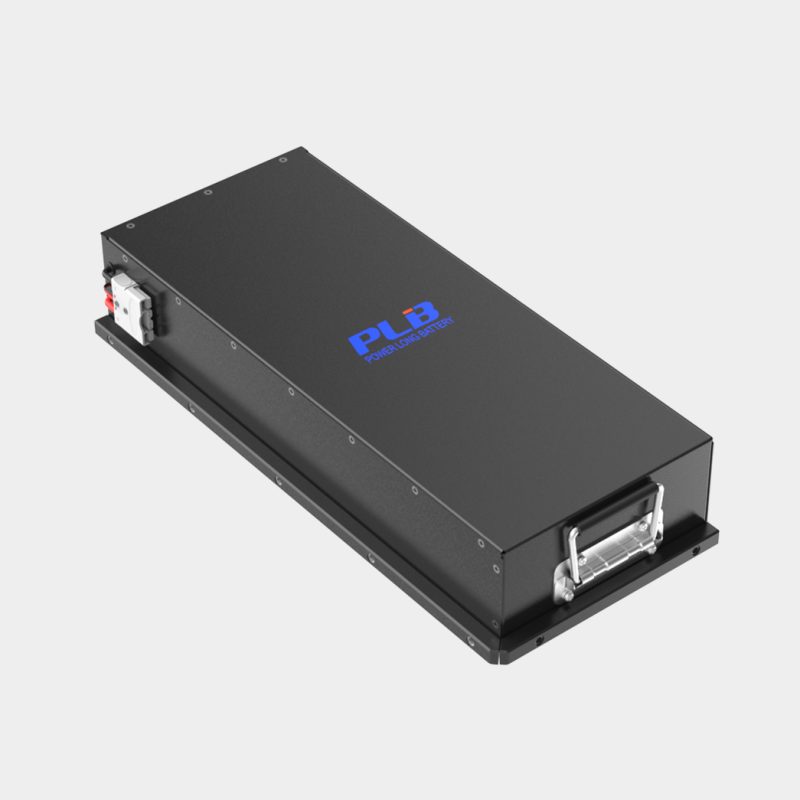

48V 30Ah 15S9P AGV Battery
  • 48V 30Ah 15S9P AGV Battery
  • 48V 30Ah 15S9P AGV Battery
  • 48V 30Ah 15S9P AGV Battery
Electrical Specifications
Nominal Voltage48V
Nominal Capacity29.7Ah
Energy1425.6wh
Internal Resistance≤60mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)538*227*100MM
Weight18kg
TerminalGrida PS70AFP
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current30A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current40A
Overdischarge Protection Voltage37.5V
Overdischarge Recovery Voltage45V
Short Circuit Protection≤600uS
Charge Specifications
Charge Current5.94A
Max Charge Current30A
Charge Voltage54.75V
Overcharge Protection Voltage56.25V
Overcharge Recovery Voltage54V
Equalization Turn-on Voltage52.5V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

48V 30Ah 15S9P AGV Battery

Discharge SOC curve

48V 30Ah 15S9P AGV Battery

30A charging current curve

48V 30Ah 15S9P AGV Battery

40A discharge current curve

48V 30Ah 15S9P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

48V 30Ah 15S9P AGV Battery

2D Drawing

2D Drawing
