| Electrical Specifications | |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Energy | 4800Wh |
| Internal Resistance | 14.5mΩ |
| Self Discharge | <1% Per Month |
| Series and Parallel | 15S1P |
| Cycle life | 2000 |
| Mechanical Specifications | |
| Cells | Prismatic 100Ah |
| Dimensions (L x W x H) | 350*526*129mm |
| Weight | 42.8Kg |
| Terminal | 安德森 SB120(Grey, blue) |
| Case Material | SPCC |
| IP Rating | IP42 |
| Discharge Specification | |
| Discharge Current | 50A |
| Max Continuous Discharge Current | 100A |
| BMS Overdischarge Protection Current | 110A |
| Overdischarge Protection Voltage | 34.5V |
| Overdischarge Recovery Voltage | 45V |
| Short Circuit Protection | yes |
| Charge Specifications | |
| Charge Current | 50A |
| Max Continuous charge Current | 100A |
| Charge Voltage | 54V |
| Overcharge Protection Voltage | 56.25V |
| Overcharge Recovery Voltage | 53.25V |
| Equalization Turn-on Voltage | 51.75V |
| Temperature Specification | |
| Discharge Temperature | -20-60℃ |
| Charge Temperature | 0-45℃ |
| Storage Temperature | -5-45℃ |
| BMS Over Temperature Protection | 65±5℃ |
| BMS Over Temperature Protection Recovery | 55±5℃ |
| Communication | |
| Communication | CAN-BUS |
| Compliance Specification | |
| Certification | / |

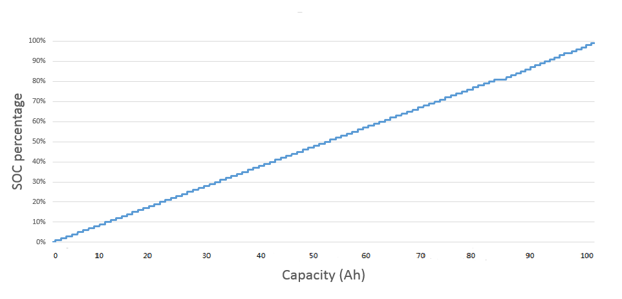

Charging SOC curve
Discharge SOC curve

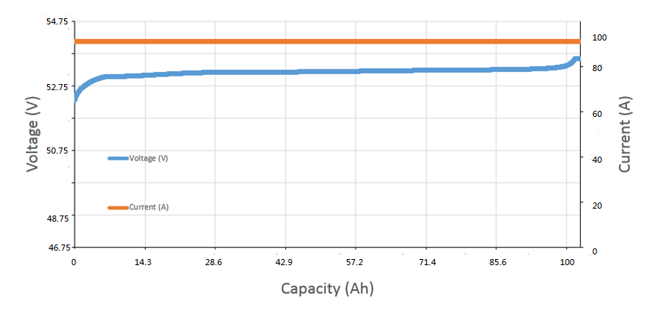

100A charging current curve

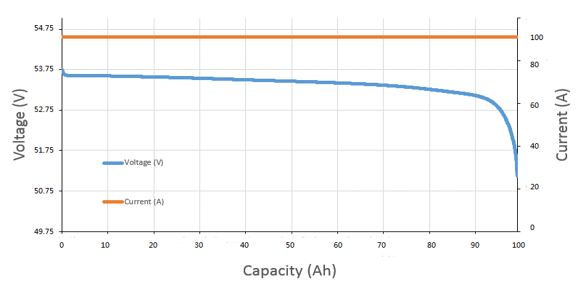

40A discharge current curve

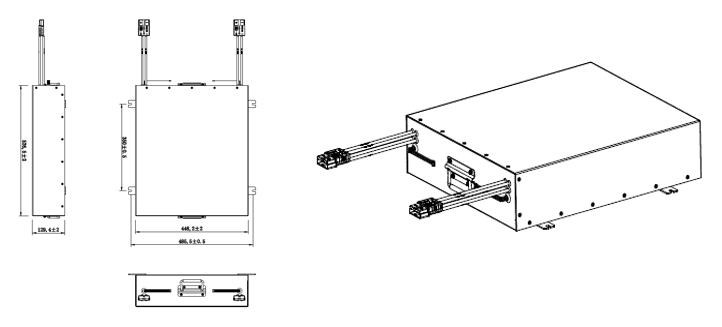

2D Drawing

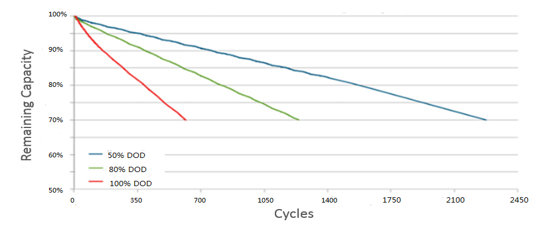

Different DOD cycle life diagram(+1C/-0.5C@25℃)
Send E-mail

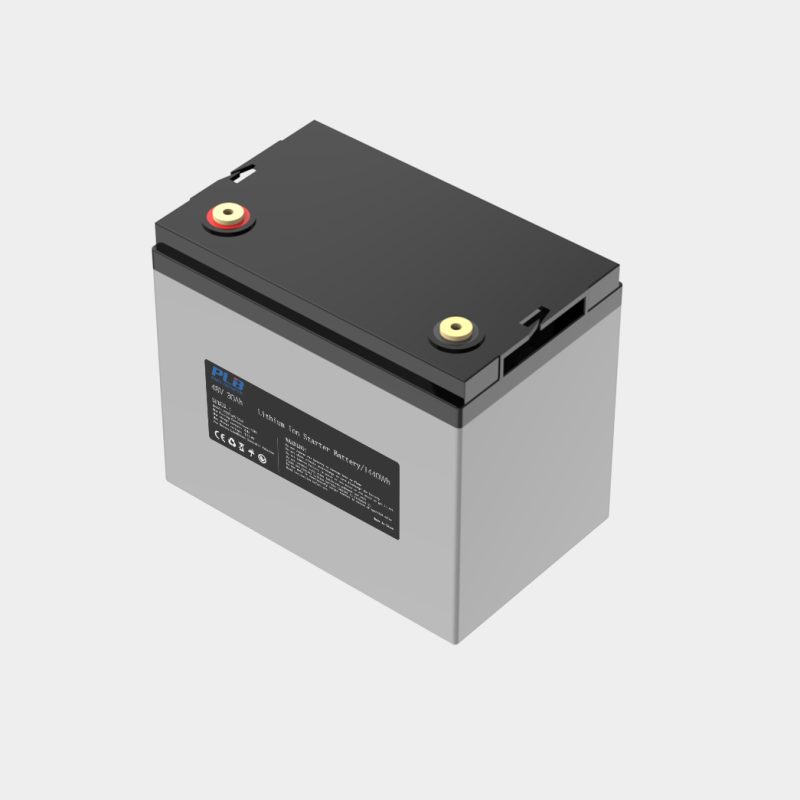

Previous: 48V 30AH LiFePO4 AGV Battery Pack
