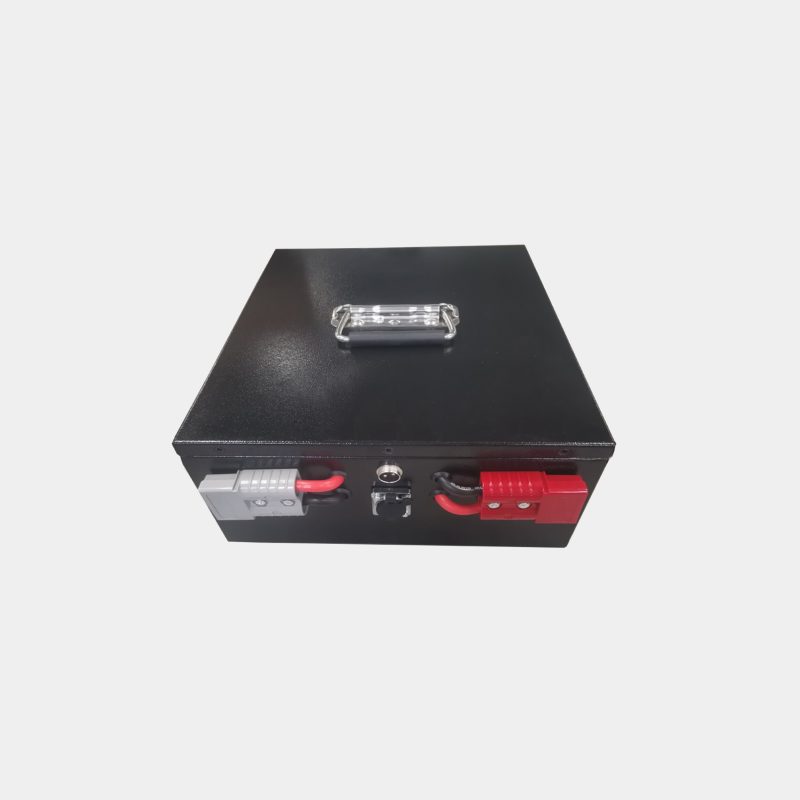

48V 49Ah 15S14P AGV Battery
  • 48V 49Ah 15S14P AGV Battery
  • 48V 49Ah 15S14P AGV Battery
  • 48V 49Ah 15S14P AGV Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage49AH
Energy2352WH
Internal Resistance≤55mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)828*259*92MM
Weight28KG
TerminalAnderson SB50
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current45A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current50A
Overdischarge Protection Voltage37.5V
Overdischarge Recovery Voltage45V
Short Circuit Protection600uS
Charge Specifications
Charge Current25A
Max Charge Current50A
Charge Voltage54.8V
Overcharge Protection Voltage56.25V
Overcharge Recovery Voltage54V
Equalization Turn-on Voltage/
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

48V 49Ah 15S14P AGV Battery

Discharge SOC curve

48V 49Ah 15S14P AGV Battery

30A charging current curve

48V 49Ah 15S14P AGV Battery

40A discharge current curve

48V 49Ah 15S14P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

48V 49Ah 15S14P AGV Battery

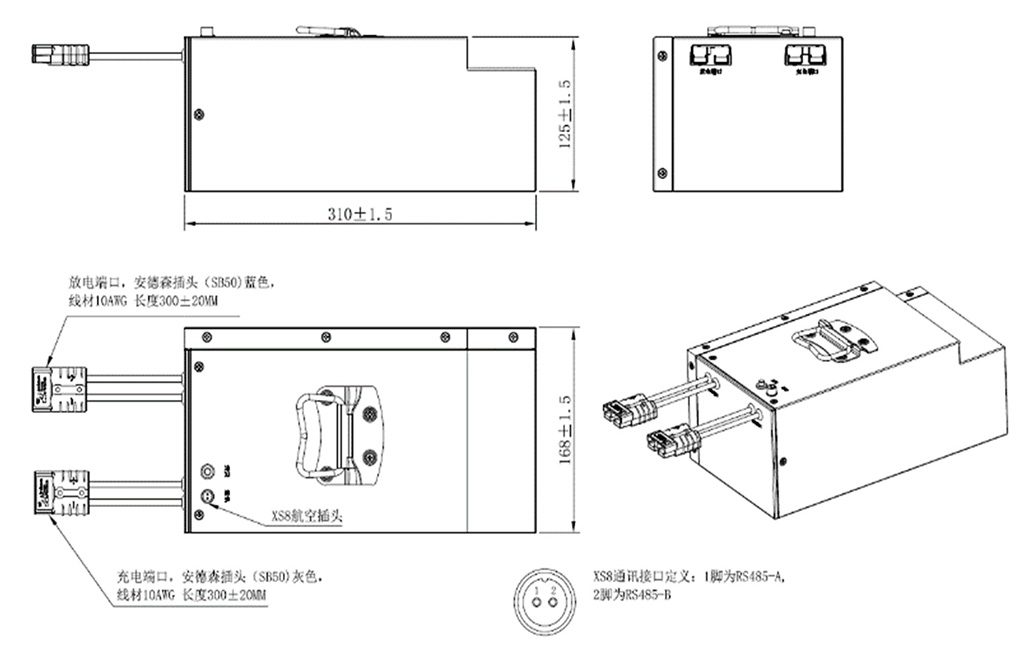

2D Drawing

2D Drawing
