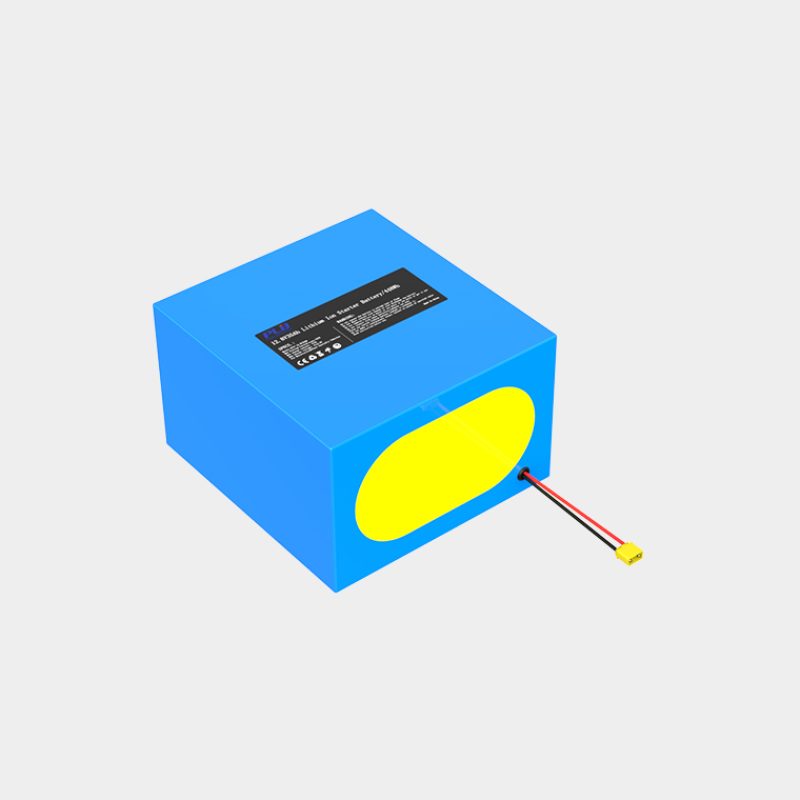

48V 30.4Ah 15S8P Medical Battery
  • 48V 30.4Ah 15S8P Medical Battery
  • 48V 30.4Ah 15S8P Medical Battery
  • 48V 30.4Ah 15S8P Medical Battery
Electrical Specifications
Nominal Voltage48V
Nominal Capacity30.4Ah
Energy1459.2Wh
Internal Resistance<55mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)222*235*145mm
Weight11.1Kg
TerminalXT60-Female
Case MaterialPVC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current30A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current32A
Overdischarge Protection Voltage33V
Overdischarge Recovery Voltage37.5V
Short Circuit Protection600uS
Charge Specifications
Charge Current6.08A
Max Charge Current15A
Charge Voltage54.75V
Overcharge Protection Voltage55.2V
Overcharge Recovery Voltage51V
Equalization Turn-on Voltage51V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationRS485


Compliance Specification
CertificationUN38.3

Charging SOC Curve

48V 30.4Ah 15S8P Medical Battery

Discharge SOC Graph

48V 30.4Ah 15S8P Medical Battery

Maximum Charge Current Curve

48V 30.4Ah 15S8P Medical Battery

Maximum Discharge Current Curve

48V 30.4Ah 15S8P Medical Battery

Different DOD cycle life diagram (1C charge 0.5C discharge @25℃)

2D Drawing

48V 30.4Ah 15S8P Medical Battery
