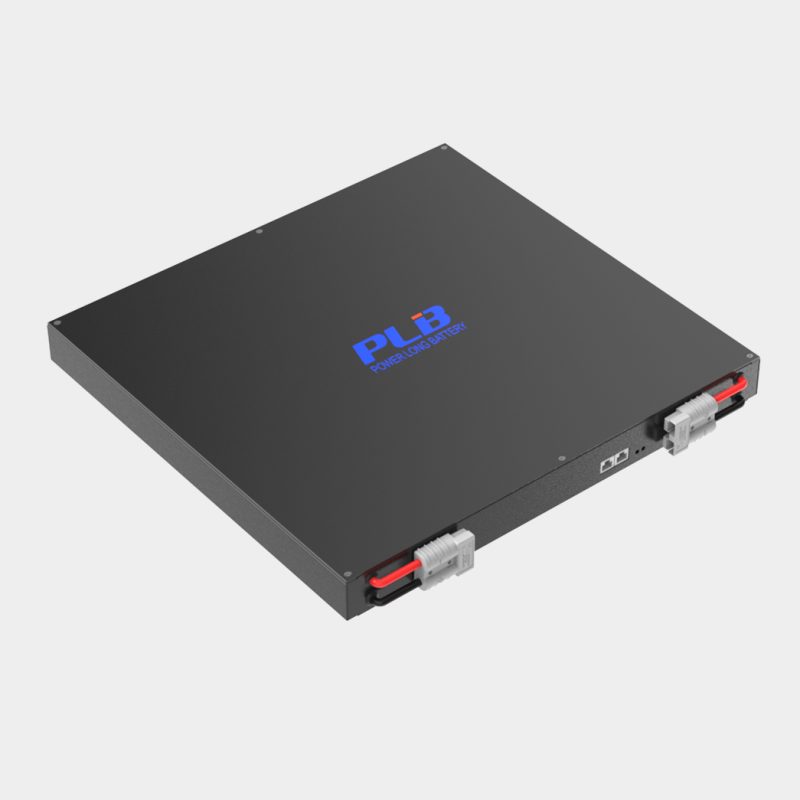

Electrical Specifications | |
Nominal Voltage | 76.8V |
Nominal Capacity | 12Ah |
Energy | 921.6Wh |
Internal Resistance | 180 |
Self Discharge | <1% Per Month |
Series and Parallel | 8P |
Matched UPS | ≤6KVA |
Mechanical Specifications | |
Cells | IFR26650-3000mAh |
Cell in Series and Parallel | 24S4P |
Dimensions (L x W x H) | 570*438*43mm |
Weight | 17.2Kg |
Terminal | 安德森 SB50 |
Case Material | SPCC |
IP Rating | IP21 |
Discharge Specification | |
Backup time | 8~15min |
Max Continuous Discharge Current | 84A |
Overdischarge Protection Voltage | 62.4V |
Overdischarge Recovery Voltage | 64.8V |
Short Circuit Protection | yes |
Charge Specifications | |
Charge Current | 12A |
Charge Voltage | 86.4V |
Overcharge Protection Voltage | 86.4V |
Overcharge Recovery Voltage | 82.8V |
Equalization Turn-on Voltage | 82.8V |
Temperature Specification | |
Discharge Temperature | -20-60℃ |
Charge Temperature | 0-45℃ |
Storage Temperature | -5-45℃ |
BMS Over Temperature Protection | 65±5℃ |
BMS Over Temperature Protection Recovery | 55±5℃ |
Communication | |
Communication | RS232,RS485 |
Compliance Specification | |
Certification | UL1973/IEC62619/UN38.3/UL1998/UL991 |
Diagram of maximum current discharge at different temperatures
Different constant power discharge curve
Plot of multiplier temperature rise
Cycle graphs of different DOD lifetime
2D Drawing
