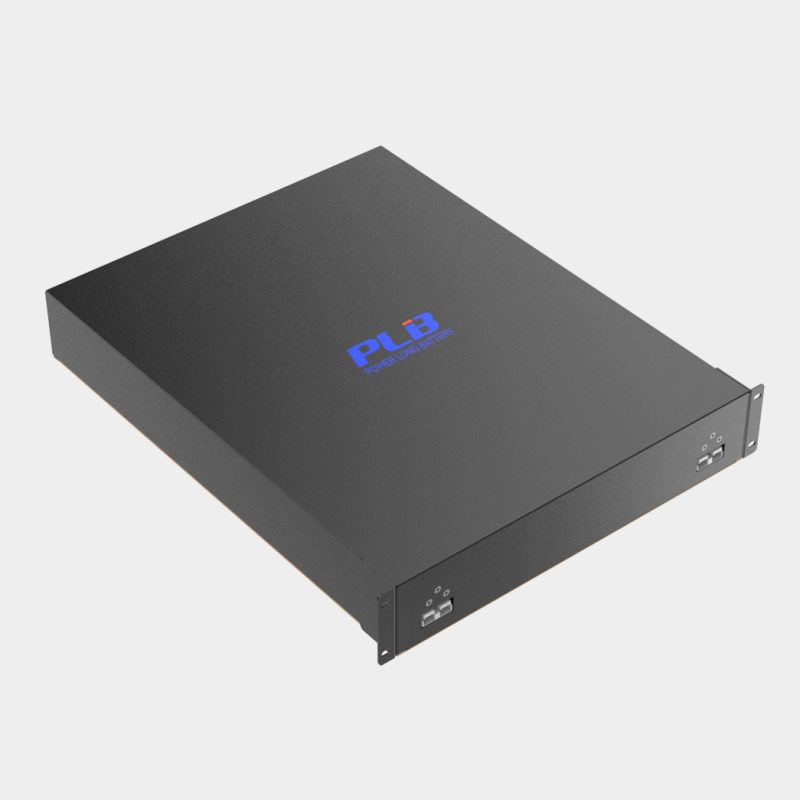

76.8V 28.8Ah 24S8P UPS Battery
  • 76.8V 28.8Ah 24S8P UPS Battery
  • 76.8V 28.8Ah 24S8P UPS Battery
  • 76.8V 28.8Ah 24S8P UPS Battery
Electrical Specifications
Nominal Voltage76.8V
Nominal Capacity28.8Ah
Energy2211.84Wh
Internal Resistance700MΩ
Self Discharge<1% Per Month
Series and ParallelSupport multiple batteries in parallel
Mechanical Specifications
Dimensions (L x W x H)600*438*86mm
Weight35.8Kg
TerminalAnderson SB50
Case MaterialSPCC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current45A
Max Instantaneous Discharge Current50A
BMS Discharge Protection Current60A
Overdischarge Protection Voltage60V
Overdischarge Recovery Voltage62.4V
Short Circuit Protection200uS
Charge Specifications
Charge Current6A
Max Charge Current6.5A
Charge Voltage86.4V
Overcharge Protection Voltage86.4V
Overcharge Recovery Voltage82.8V
Equalization Turn-on Voltage82.8V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485/RS232


Compliance Specification
CertificationUN38.3

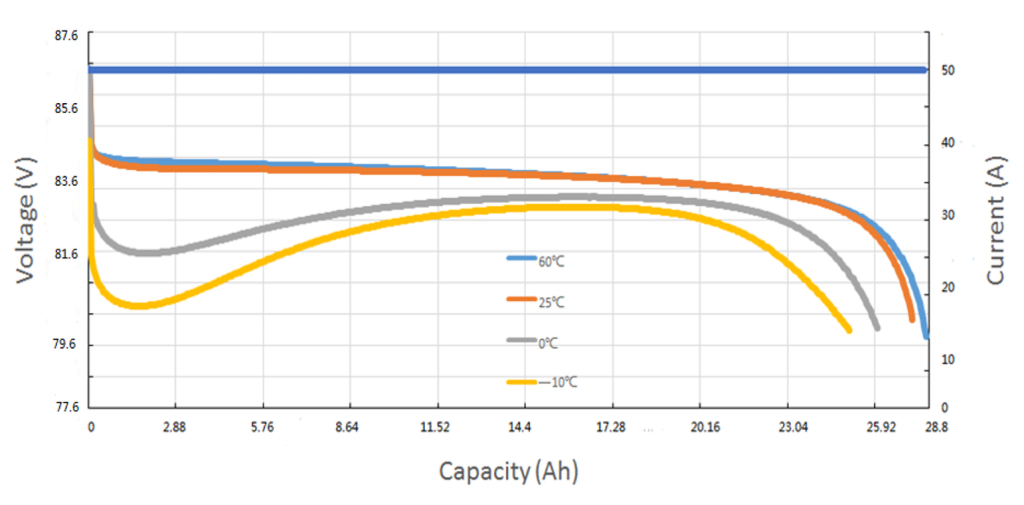

Diagram of maximum current discharge at different temperatures

76.8V 28.8Ah 24S8P UPS Battery

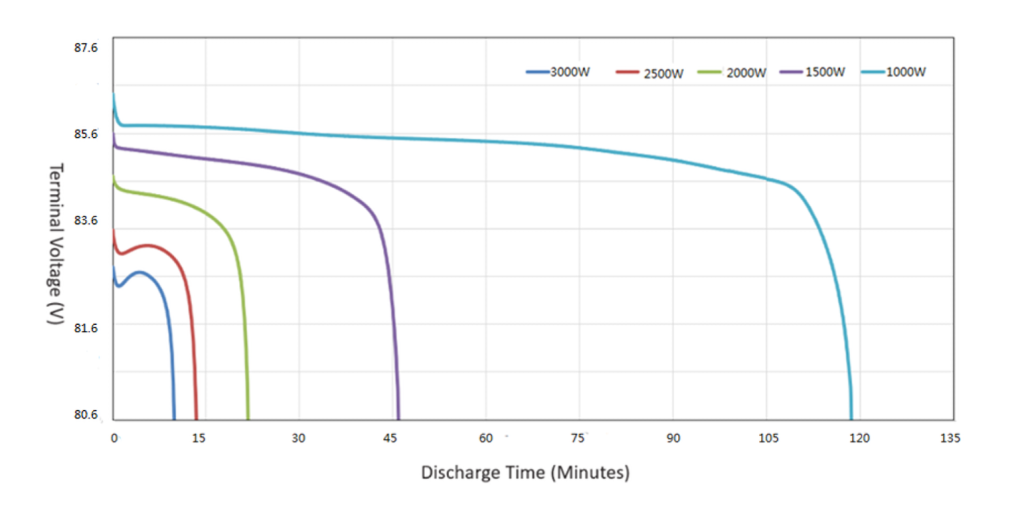

Different constant power discharge curve

76.8V 28.8Ah 24S8P UPS Battery

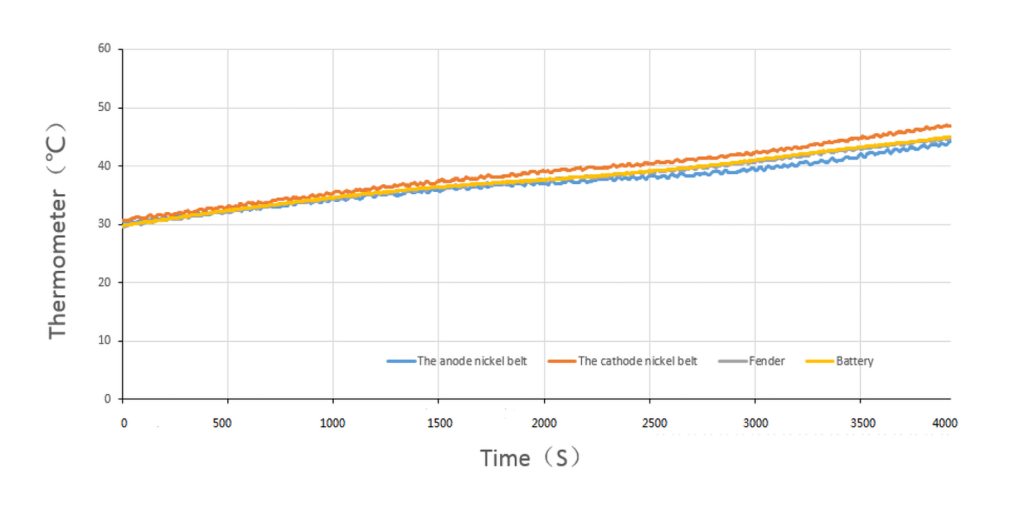

Plot of multiplier temperature rise

76.8V 28.8Ah 24S8P UPS Battery

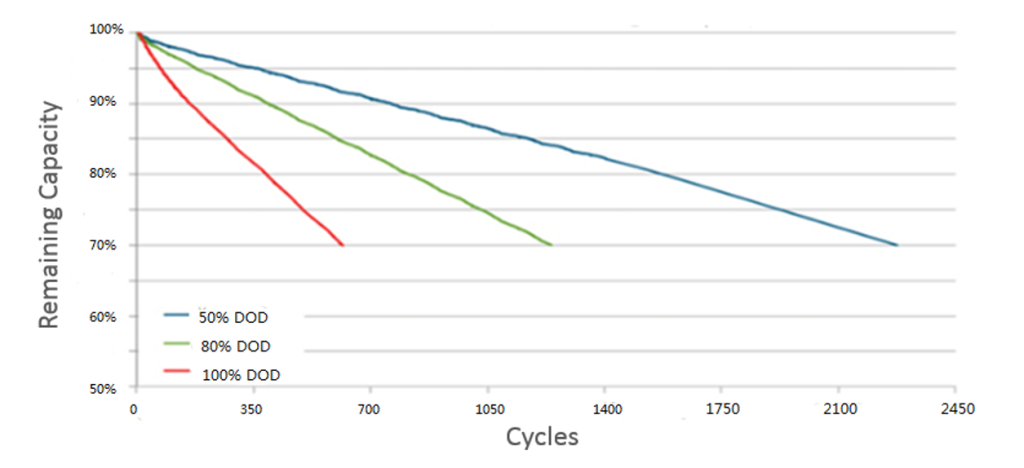

Cycle graphs of different DOD lifetime

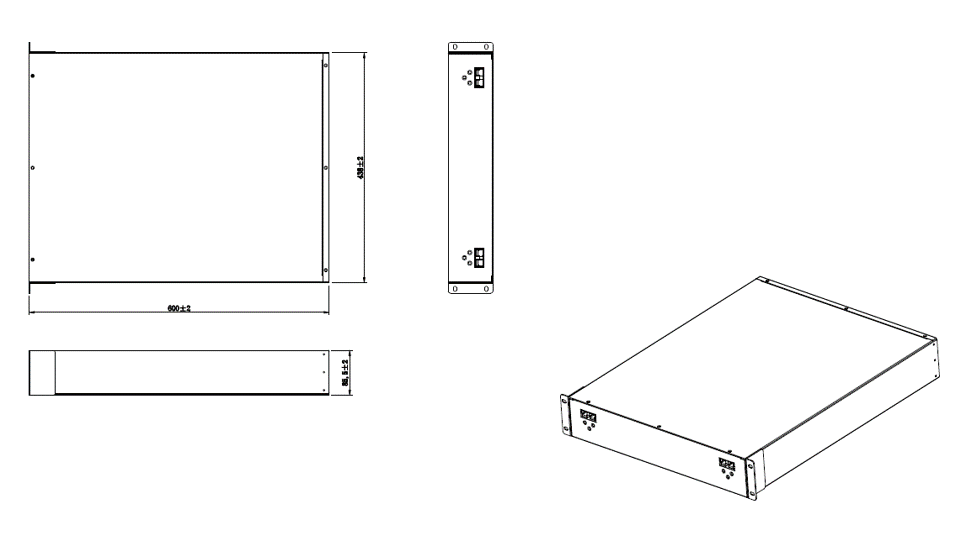

2D Drawing

76.8V 28.8Ah 24S8P UPS Battery
