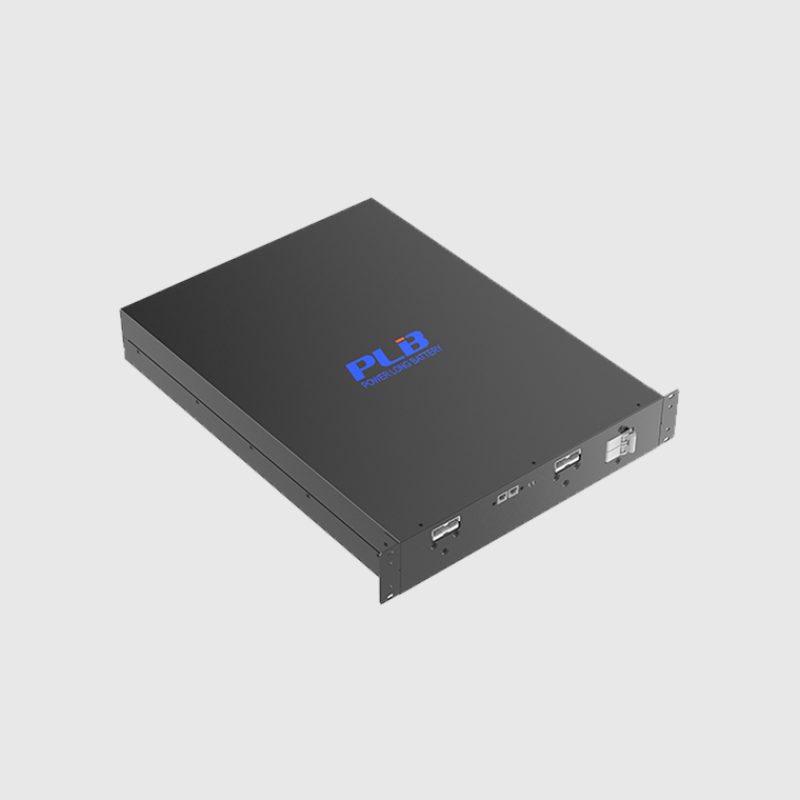

UPS 60S4P 192V12Ah
  • UPS 60S4P 192V12Ah

Product Details

Electrical specification
Norminal Voltage192V
Norminal Capacity12Ah
Energy2304Wh
Resistance≤700mΩ @ 50% SOC
Self-discharge<1%/month
Series and ParallelMultiple parallel support
Mechanical specification
Dimension(L*W*H)600x498x88mm
Weight35.8Kg
Output teminalAnderson SB50
EnclosureSPCC
IP levelIP45
Chemical26650 – LiFePO4
Discharging
Max. continous dicharge current60A
Max.instant dicharge current63A
BMS dicharge protection current(over-current protection 1)70 A ±5A
Bus less voltage protection156V
Voltage for bus recovery162V
BMS over charge protection voltage150V
short protection50-150uS
Charging
Recommended charge current6.3A
Max. charge current6.3A

Recommended charge voltage

216V DC
BMS charge voltage cutoff219V DC
Bus less voltage protection219V
Voltage for bus recovery216V

balance open voltage

204V
Teperature specification
Discharge temperature range-20-60℃
Charge temperature range0-45℃
storage temperature-5-45℃
BMS high temperature cutoff(over temperature protection)65±5℃
Re-connection tempreature(over tempreature protection recovery)55±5℃
Communicaiton method

Communicaiton method

RS485/RS232



Certificate

CertificationUL1973、IEC62619、UN38.3、UL1998/UL991

Diagram of maximum current discharge at different temperatures

UPS 60S4P 192V12Ah

Different constant power discharge curve

2022092908444318

Plot of multiplier temperature rise

UPS 60S4P 192V12Ah

Cycle graphs of different DOD lifetime (0.5C充,5C放@25℃)

2022092908444970

2D drawing of battery

UPS 60S4P 192V12Ah
