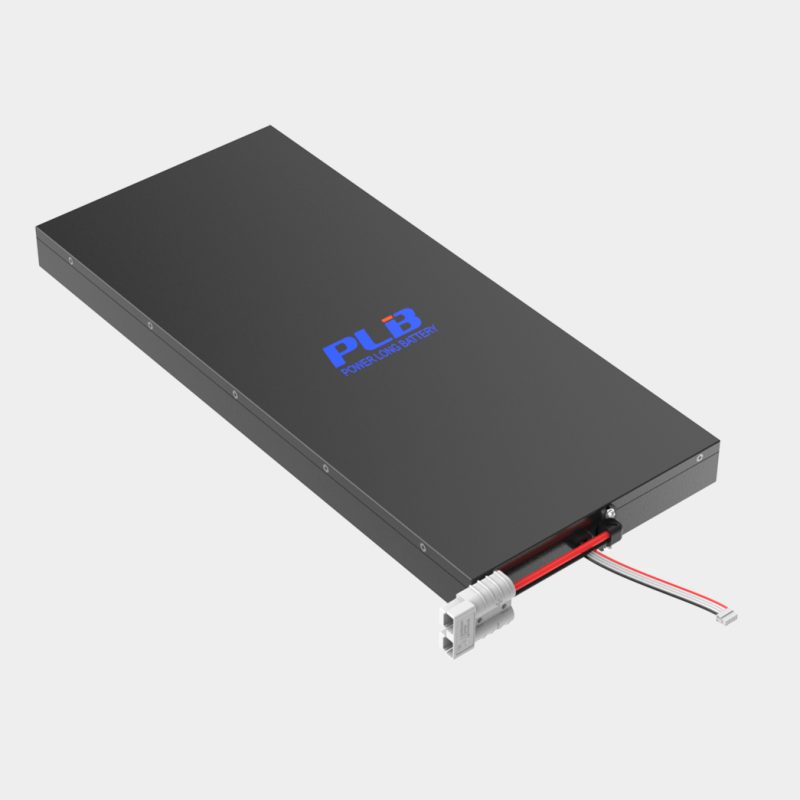

38.4V 5Ah 12S2P UPS Battery
  • 38.4V 5Ah 12S2P UPS Battery
  • 38.4V 5Ah 12S2P UPS Battery
  • 38.4V 5Ah 12S2P UPS Battery
Electrical Specifications
Nominal Voltage38.4V
Nominal Voltage5Ah
Energy192Wh
Internal Resistance≤45mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)470*207*35mm
Weight5.1Kg
Terminal/
Case MaterialSPCC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current60A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current80V
Overdischarge Protection Voltage30V
Overdischarge Recovery Voltage32V
Short Circuit Protection5±2.5S
Charge Specifications
Charge Current2.5A
Max Charge Current5A
Charge Voltage43.8V
Overcharge Protection Voltage43.2V
Overcharge Recovery Voltage41.4V
Equalization Turn-on Voltage40.8V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationRS232


Compliance Specification
Certification

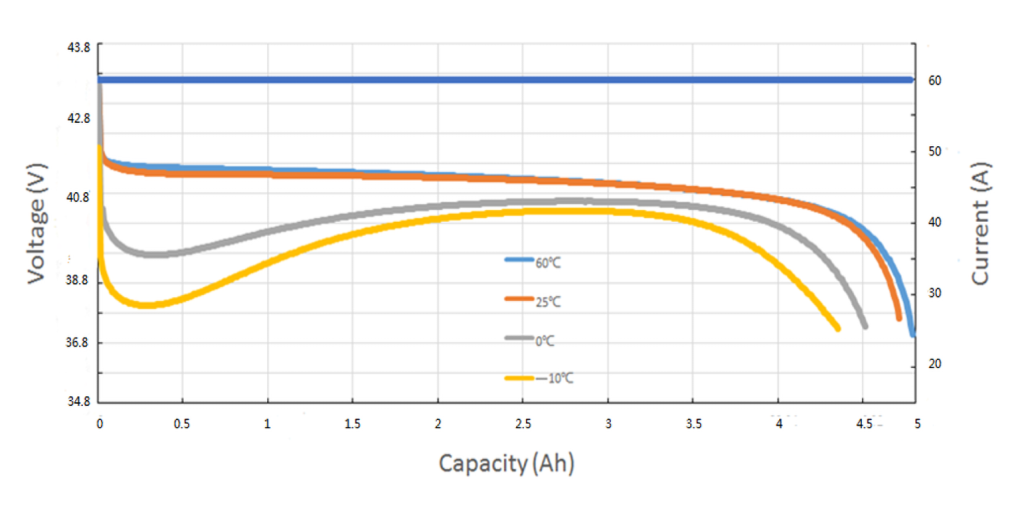

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

Different constant power discharge curve

Plot of multiplier temperature rise

Plot of multiplier temperature rise

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

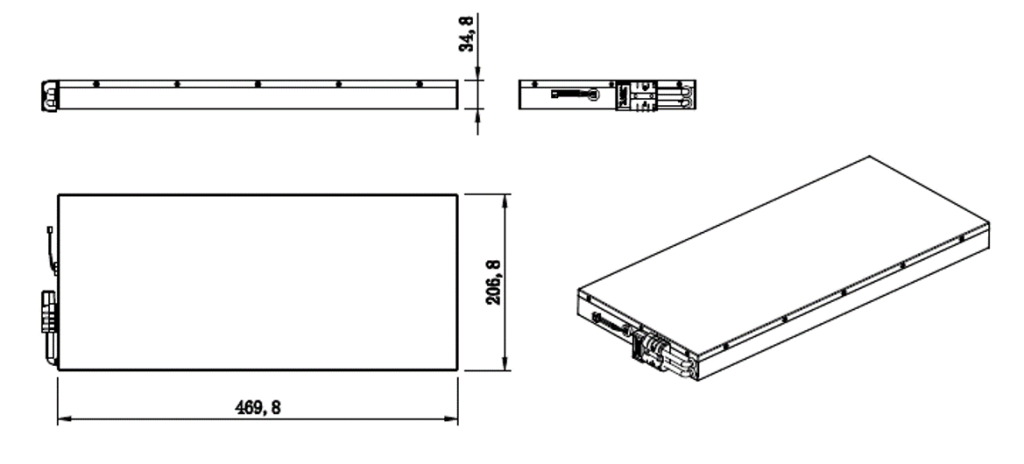

2D Drawing

2D Drawing
