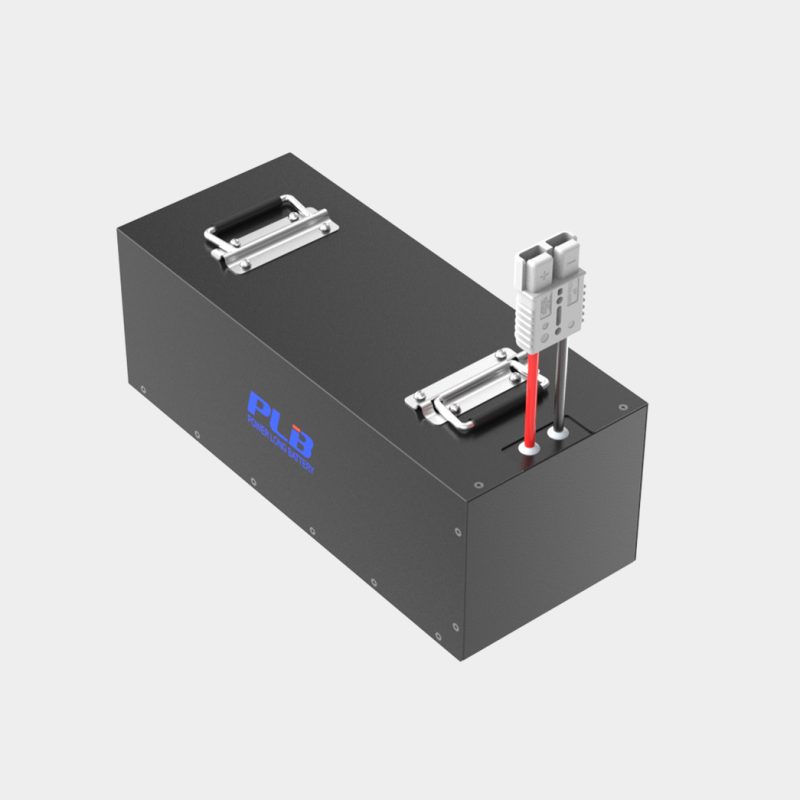

51.2V 40AH LiFePO4 AGV Battery Pack
  • 51.2V 40AH LiFePO4 AGV Battery Pack
  • 51.2V 40AH LiFePO4 AGV Battery Pack
  • 51.2V 40AH LiFePO4 AGV Battery Pack
Electrical Specifications
Nominal Voltage51.2V
Nominal Capacity40Ah
Energy2048Wh
Internal Resistance75mΩ
Self Discharge<1% Per Month
Series and Parallel16S12P
Cycle life2000
Mechanical Specifications
CellsIFR26650-3300mAh
Dimensions (L x W x H)375*250*170mm
Weight20Kg
TerminalLeader
Case MaterialSPCC
IP RatingIP42
Discharge Specification
Discharge Current20A
Max Continuous Discharge Current40A
BMS Overdischarge Protection Current50A
Overdischarge Protection Voltage35.2V
Overdischarge Recovery Voltage48V
Short Circuit Protectionyes
Charge Specifications
Charge Current20A
Max Charge Current40A
Charge Voltage58.4V
Overcharge Protection Voltage60V
Overcharge Recovery Voltage57.6V
Equalization Turn-on Voltage54.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationS485


Compliance Specification
Certification/

Charging SOC curve

51.2V 40AH LiFePO4 AGV Battery Pack

Discharge SOC curve

51.2V 40AH LiFePO4 AGV Battery Pack

40A charging current curve

51.2V 40AH LiFePO4 AGV Battery Pack

40A discharge current curve

51.2V 40AH LiFePO4 AGV Battery Pack

2D Drawing

51.2V 40AH LiFePO4 AGV Battery Pack

Different DOD cycle life diagram(+1C/-0.5C@25℃)

51.2V 40AH LiFePO4 AGV Battery Pack
