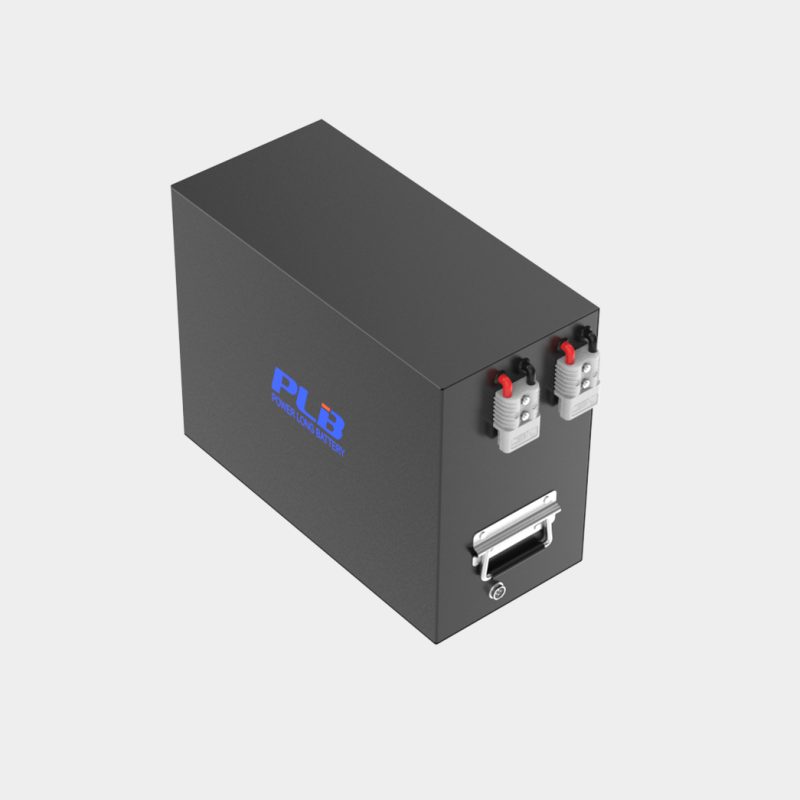

48V 72Ah 15S20P AGV Battery
  • 48V 72Ah 15S20P AGV Battery
  • 48V 72Ah 15S20P AGV Battery
  • 48V 72Ah 15S20P AGV Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage72AH
Energy3456WH
Internal Resistance≤50mΩ
Self Discharge<1% Per Month
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)430*330*200MM
Weight37KG
TerminalSBS 75X
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current70A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current80A
Overdischarge Protection Voltage40.5V
Overdischarge Recovery Voltage48V
Short Circuit Protection ≤600uS
Charge Specifications
Charge Current14A
Max Charge Current35A
Charge Voltage54.75V
Overcharge Protection Voltage56.25V
Overcharge Recovery Voltage54V
Equalization Turn-on Voltage51V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

48V 72Ah 15S20P AGV Battery

Discharge SOC curve

48V 72Ah 15S20P AGV Battery

30A charging current curve

48V 72Ah 15S20P AGV Battery

40A discharge current curve

48V 72Ah 15S20P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

48V 72Ah 15S20P AGV Battery

2D Drawing

2D Drawing
