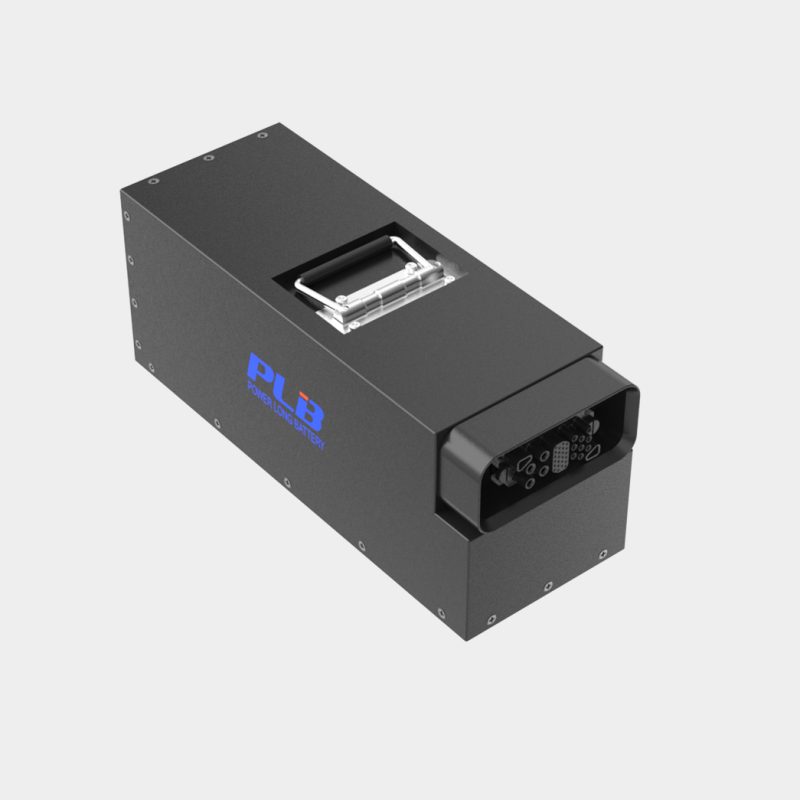

51.2V 22.8Ah 16S6P AGV Battery
  • 51.2V 22.8Ah 16S6P AGV Battery
  • 51.2V 22.8Ah 16S6P AGV Battery
  • 51.2V 22.8Ah 16S6P AGV Battery
Electrical Specifications
Nominal Voltage51.2V
Nominal Capacity22.8Ah
Energy1167.36Wh
Internal Resistance≤75mΩ @ 50% SOC
Self Dischargeper month <1%
Series and Parallel/
Mechanical Specifications
Dimensions (L x W x H)381*160*142mm
Weight12.1Kg
TerminalPS70AFP-8028P2
Case MaterialSPCC
IP RatingIP42
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current22.8A
Max Instantaneous Discharge Current25A
BMS Discharge Protection Current30±5A
Overdischarge Protection Voltage35.2V
Overdischarge Recovery Voltage48V
Short Circuit Protection/
Charge Specifications
Charge Current11.4A
Max Charge Current25A
Charge Voltage58.4V DC
Overcharge Protection Voltage60V
Overcharge Recovery Voltage48V
Equalization Turn-on Voltage54.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protectio65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

51.2V 22.8Ah 16S6P AGV Battery

Discharge SOC curve

51.2V 22.8Ah 16S6P AGV Battery

Curve of Maximum Charging Current

51.2V 22.8Ah 16S6P AGV Battery

Curve of Maximum Discharge Current

51.2V 22.8Ah 16S6P AGV Battery

2D Drawing

51.2V 22.8Ah 16S6P AGV Battery

Cycle life diagram of different DODs (1C charge, 0.5C discharge @ 25 ℃)
