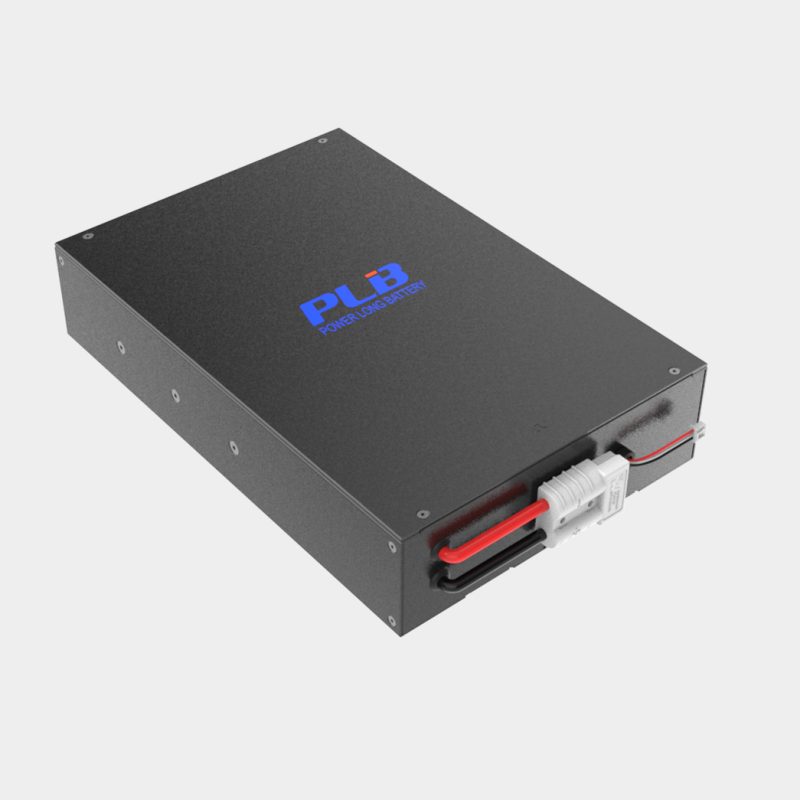

48V 9Ah 15S3P UPS Battery
  • 48V 9Ah 15S3P UPS Battery
  • 48V 9Ah 15S3P UPS Battery
  • 48V 9Ah 15S3P UPS Battery
Electrical Specifications
Nominal Voltage48V
Nominal Voltage9Ah
Energy432Wh
Internal Resistance≤150mΩ
Self Discharge<1% Per Month
Series and Parallelmultiple parallel
Mechanical Specifications
Dimensions (L x W x H)311*207*66mm
Weight7.1Kg
Terminal/
Case MaterialSPCC
IP Rating/
Cells26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current50A
Max Instantaneous Discharge Current/
BMS Discharge Protection Current/
Overdischarge Protection Voltage39V
Overdischarge Recovery Voltage40.5V
Short Circuit Protection200uS
Charge Specifications
Charge Current4.5A
Max Charge Current6.3A
Charge Voltage54V
Overcharge Protection Voltage52.88V
Overcharge Recovery Voltage51.75V
Equalization Turn-on Voltage51.75V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationRS232,RS485


Compliance Specification
Certification/

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

48V 9Ah 15S3P UPS Battery

Plot of multiplier temperature rise

48V 9Ah 15S3P UPS Battery

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

2D Drawing

2D Drawing
