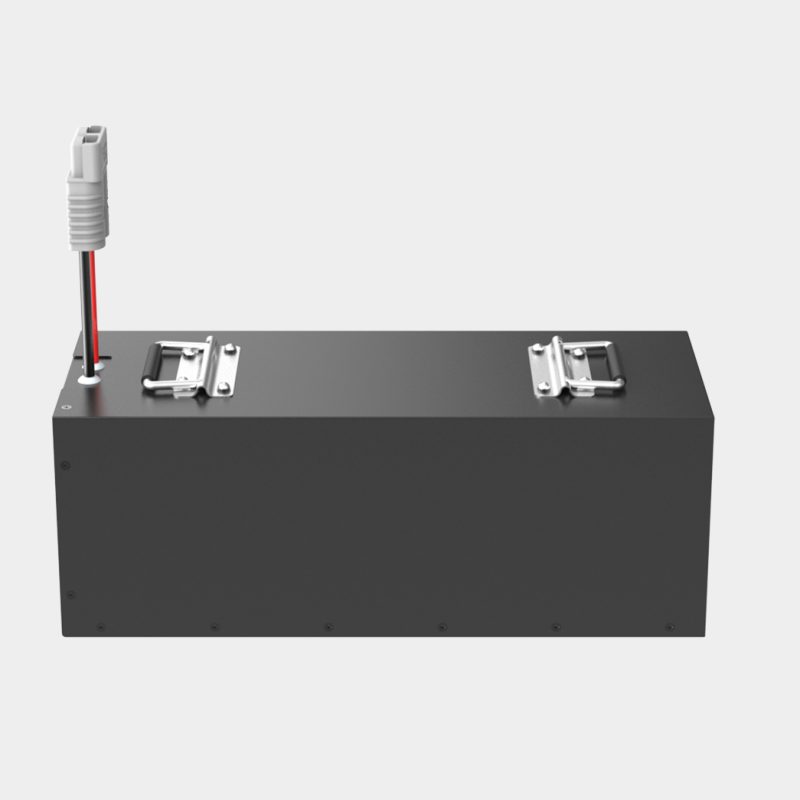

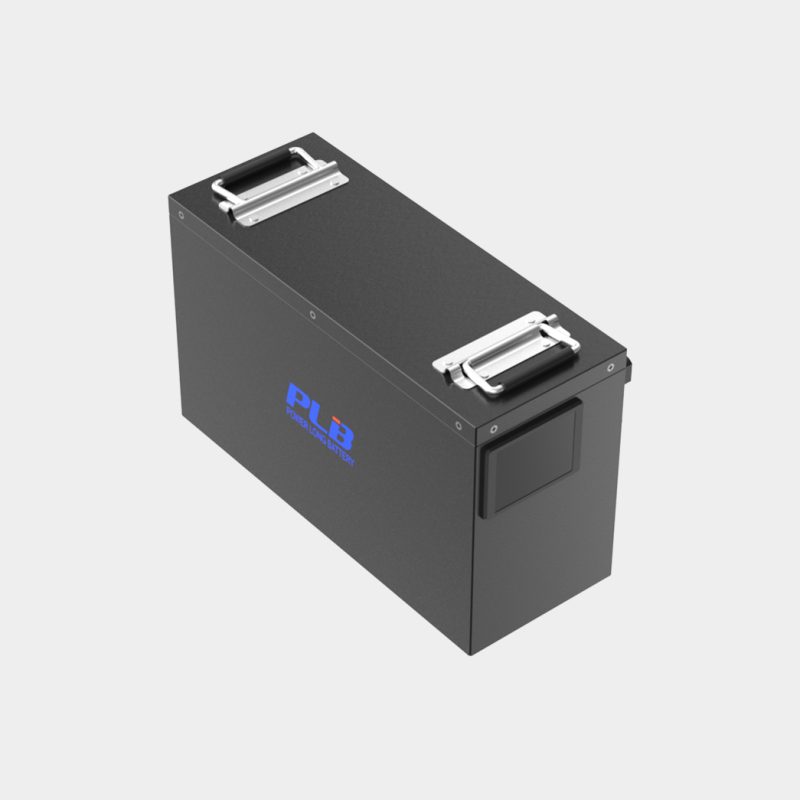

51.2V 36.3AH 16S11P AGV Battery
  • 51.2V 36.3AH 16S11P AGV Battery
  • 51.2V 36.3AH 16S11P AGV Battery
  • 51.2V 36.3AH 16S11P AGV Battery
Electrical Specifications
Nominal Voltage 51.2V
Nominal Voltage 36.3AH
Energy 1858.56WH
Internal Resistance ≤55 mΩ
Self Discharge <1% Per Month
Series and Parallel /
Mechanical Specifications
Dimensions (L x W x H) 400*240*156MM
Weight 22KG
Terminal PL082Y-61-10
Case Material SPCC
IP Rating IP42
Cells 26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 40A
Max Instantaneous Discharge Current /
BMS Discharge Protection Current 45A
Overdischarge Protection Voltage 40V
Overdischarge Recovery Voltage 48V
Short Circuit Protection ≤600
Charge Specifications
Charge Current 18.15V
Max Charge Current 40A
Charge Voltage 58.4V
Overcharge Protection Voltage 60V
Overcharge Recovery Voltage 57.6V
Equalization Turn-on Voltage 54.4V
Temperature Specification
Discharge Temperature-20-60℃
Charge Temperature0-45℃
Storage Temperature-5-45℃
BMS Over Temperature Protection65±5℃
BMS Over Temperature Protection Recovery55±5℃
Communication
CommunicationRS485


Compliance Specification
Certification/

Charging SOC curve

51.2V 36.3AH 16S11P AGV Battery

Discharge SOC curve

51.2V 36.3AH 16S11P AGV Battery

30A charging current curve

51.2V 36.3AH 16S11P AGV Battery

40A discharge current curve

51.2V 36.3AH 16S11P AGV Battery

Different DOD cycle life diagram(+1C/-0.5C@25℃)

51.2V 36.3AH 16S11P AGV Battery

2D Drawing

2D Drawing
