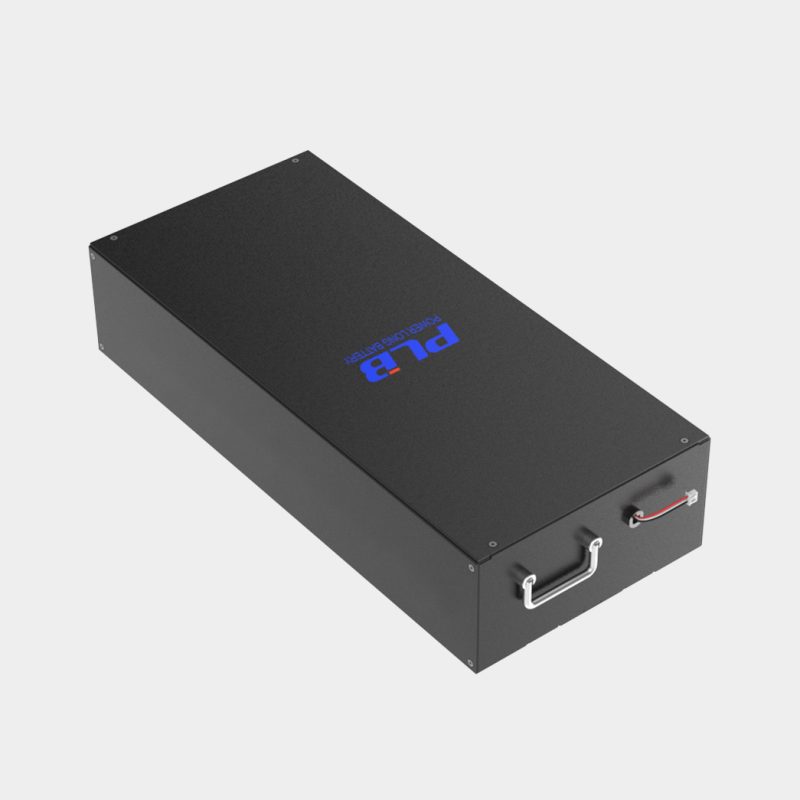

192V 6Ah 60S2P UPS Battery
  • 192V 6Ah 60S2P UPS Battery
  • 192V 6Ah 60S2P UPS Battery
  • 192V 6Ah 60S2P UPS Battery
Electrical Specifications
Nominal Voltage 192V
Nominal Voltage 6Ah
Energy 1152Wh
Internal Resistance ≤530mΩ
Self Discharge <1% Per Month
Series and Parallel Support multiple parallel
Mechanical Specifications
Dimensions (L x W x H) 520*214*120mm
Weight 17.8Kg
Terminal Anderson SB50
Case Material SPCC
IP Rating /
Cells 26650 – LiFePO4
Discharge Specification
Max Continuous Discharge Current 35A
Max Instantaneous Discharge Current 40A
BMS Discharge Protection Current 70A
Overdischarge Protection Voltage 156V
Overdischarge Recovery Voltage 162V
Short Circuit Protection 50-150uS
Charge Specifications
Charge Current 2.5A
Max Charge Current 3.5A
Charge Voltage 216V DC
Overcharge Protection Voltage 219V
Overcharge Recovery Voltage 216V
Equalization Turn-on Voltage 204V
Temperature Specification
Discharge Temperature -20-60℃
Charge Temperature 0-45℃
Storage Temperature -5-45℃
BMS Over Temperature Protection 65±5℃
BMS Over Temperature Protection Recovery 55±5℃
Communication
CommunicationRS485/RS232


Compliance Specification
CertificationUL1973、IEC62619、UN38.3、UL1998/UL991

Diagram of maximum current discharge at different temperatures

Diagram of maximum current discharge at different temperatures

Different constant power discharge curve

Different constant power discharge curve

Plot of multiplier temperature rise

Plot of multiplier temperature rise

Cycle graphs of different DOD lifetime

Cycle graphs of different DOD lifetime

2D Drawing

192V 6Ah 60S2P UPS Battery
