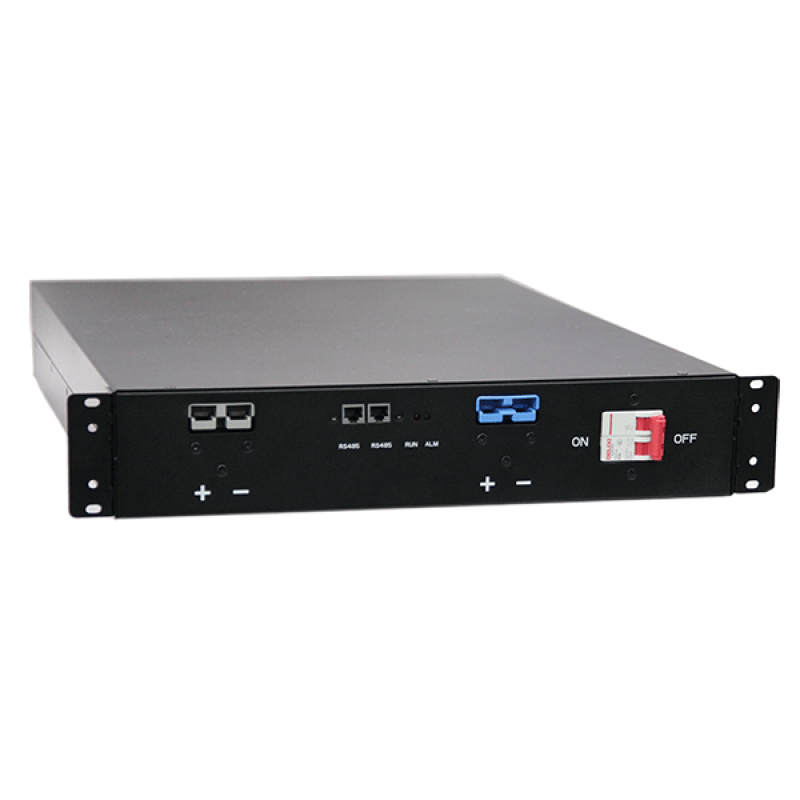

UPS external lithium battery–Rack 2U
  • UPS external lithium battery–Rack 2U

Specifications:

Model NO. 25.6V26.4Ah 38.4V26.4Ah 51.2V26.4Ah 76.8V26.4Ah 96V26.4Ah 192V12Ah 256V12Ah
Voltage 25.6V 38.4V 51.2V 76.8V 96V 192V 256V
Capacity 26.4Ah 26.4Ah 26.4Ah 26.4Ah 26.4Ah 12Ah 12Ah
Operating voltage 20V~28.8V 30V~43.2V 40V~57.6V 60V~86.4V 75V~108V 150V~216V 200V~288V
Standard Charge Current 13A 13A 13A 13A 13A 12A 12A
Max Continuous Discharge Current 50A 50A 50A 50A 50A 70A 70A
Battery type LiFePO4(10C discharge)
Design life 11 years
IP rating IP21
Charge temperature 0~45℃
Discharge temperature -20~60℃
Module parallel 3
Dimension 438*450*88 438*450*88 438*450*88 438*570*88 438*700*88 438*650*88 438*800*88
Weight 17.3Kg 20Kg 23Kg 30Kg 35Kg 30.5Kg 36.5Kg
Communication RS485
Standard Compliance UL1973、IEC62619、UN38.3
