What Is A Battery C Rating & How to Calculate C Rate

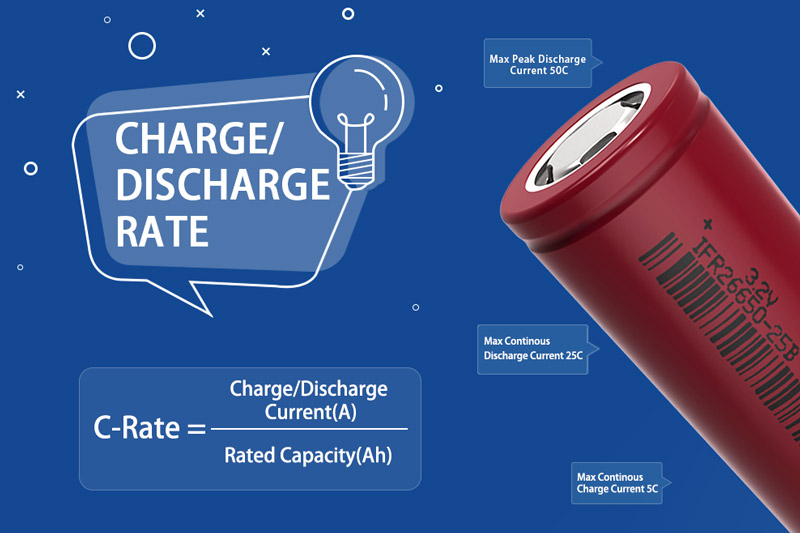

The C-rate is a crucial parameter for measuring the charge and discharge rate of lithium batteries, directly affecting their performance and application scenarios. It represents the relationship between the discharge/charge current and the rated capacity of the battery. The formula for calculating the C-rate is: C-Rate = Charge/Discharge Current (A) / Rated Capacity (Ah). A clear understanding of the C-rate helps in selecting the right lithium battery to ensure stable operation and optimal efficiency of the device.

charge/discharge rate - plb battery

What is C-Rate?

The C-rate defines the charging and discharging speed of a battery and is expressed as the ratio of current to the rated capacity (Ah). A 1C charging rate means the battery can be fully charged in one hour. The smaller the C value, the longer the charging time. A 1C discharge rate means the battery can be fully discharged in one hour. Similarly, a lower C value results in a longer discharge duration.

Selecting the right C-rate for different applications ensures safety, performance, and battery lifespan. If a low C-rate battery is used in a high-current application, the device may not function properly. On the other hand, using a high C-rate battery in a low-current application increases costs, as high-rate batteries typically have lower capacity and cycle life compared to low-rate batteries.

Discharge Time at Different C-Rates

Taking the PLB IFR26650-2500mAh battery as an example, which supports a maximum discharge rate of 50C, the discharge times under different C-rates are: 50C → 1.2 minutes; 30C → 2 minutes; 10C → 6 minutes; 1C → 1 hour; 0.5C → 2 hours.

These are theoretical values. In real-world applications, the C-rate varies with temperature. At lower temperatures, the effective C-rate decreases, while at higher temperatures, it increases.

In cold environments, avoid high-current discharges; preheating the battery before use is recommended. In hot environments, prolonged high-current discharge should be minimized, and cooling systems can help prevent overheating.

PLB Lithium Iron Phosphate (LiFePO₄) Battery C-Rate Range

PLB specializes in 26650 battery cell R&D, production, and custom PACK solutions, offering different types of cells for various applications:

High-power cells (for high discharge rates): IFR26650-2500mAh, IFR26650-3000mAh;

High-capacity cells (for longer runtime): IFR26650-3300mAh, IFR26650-3800mAh, IFR26650-4000mAh.

Charging & Discharge Rate Ranges: Charging C-rate: 0.5C to 5C; Discharge C-rate: 0.5C to 50C.

C-Rate Requirements for Different Applications

Starter Batteries: Used in motorcycles, cars, and emergency jump starters, these batteries must provide instant high-current output. As a result, they require high C-rate designs to ensure sufficient discharge capacity.

Energy Storage Batteries: These batteries store energy from the grid, solar panels, or generators and provide backup power when needed. Since these applications do not require high discharge rates, most energy storage batteries operate at 0.5C to 1C discharge rates.

Material Handling Batteries: Widely used in forklifts, AGVs, and other industrial transport equipment, these batteries must support fast charging to maximize efficiency and reduce downtime. A 1C or higher charge rate is recommended to ensure stability and endurance in demanding work environments.

FAQs on Lithium Battery C-Rates

Is a higher C-rate always better?

Not necessarily. It depends on the application. While a higher C-rate allows for faster charging and discharging, it also reduces battery capacity and increases costs. Choosing the right C-rate provides the best balance of performance and cost-effectiveness.

How do I select the right C-rate for my battery?

Choosing the appropriate C-rate depends on factors like the application, current requirements, and charge/discharge duration. If you’re unsure, feel free to contact our engineers for expert advice.

PLB is committed to delivering high-performance lithium battery solutions, providing reliable, efficient, and long-lasting products. Contact us today for the best battery solutions tailored to your needs!
