An In-depth Understanding of 50C High Discharge Rate LiFePO4 Batteries
Lithium iron phosphate (LiFePO4) batteries boast a range of unique advantages, including high energy density, long cycle life, low self-discharge rate, no memory effect, high safety, and environmental friendliness. These batteries are widely used in UPS, energy storage systems, AGVs, starter power supplies, and emergency power systems.
With the rapid development of the new energy sector in recent years, numerous companies have entered the market, bringing new application opportunities for LiFePO4 batteries as well as new challenges, especially in scenarios requiring high power output and fast charging. To address these issues, PLB Battery has introduced the 50C high discharge rate LiFePO4 battery (IFR26650-25B), achieving high power output and rapid charging capabilities. Let’s delve into the features of this high-rate battery.
Before exploring high-rate batteries, it’s essential to understand what “rate” means. The rate, denoted by the letter “C”, indicates the battery’s charge and discharge performance. For example, the nominal rated capacity of the IFR26650-25B battery is 2500mAh (1C), 1250mAh would be 0.5C, and 125Ah (125,000mAh) would be 50C. The higher the C-rate, the higher the current the battery can discharge. Therefore, a high-rate battery is one that can discharge a large current.

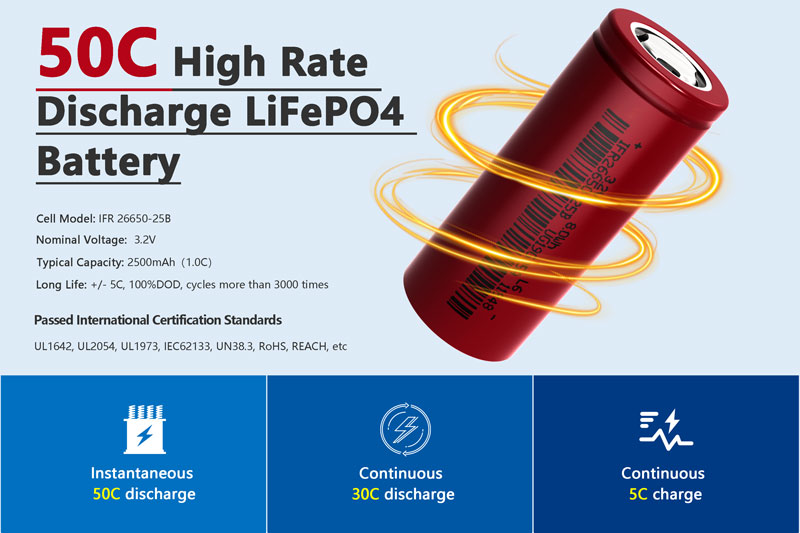

The PLB 50C high discharge rate LiFePO4 battery (IFR26650-25B) can achieve an instantaneous 50C discharge and a continuous 30C discharge, with a 5C charge rate. This technological breakthrough overcomes the cylindrical LiFePO4 battery industry’s limitations, opening up endless possibilities for cylindrical LiFePO4 battery applications. Here are the detailed specifications of the battery:
Model: IFR26650-25B
Battery Dimensions: Diameter 26.3±0.2mm, Height 65.2±0.3mm
Standard Capacity: 2500mAh (8Wh)
Standard Voltage: 3.2V
Resistance (AC 1kHz): ≤6mΩ
Energy Density: 93Wh/kg
Continuous Charge Current/Time: Standard 1C/60 mins; Maximum 5C/12 mins
Continuous Discharge Current/Time: Standard 1C/60 mins; Maximum 25C/2.4 mins
Maximum Pulse Discharge Current/Time: Long Pulse 30C (<60s); Short Pulse 50C (<10s)
Operating Temperature: Charge 0℃ ~ 45℃; Discharge -20℃ ~ 60℃; Storage -20℃ ~ 45℃
Cycle Life: 100% DOD ≥3000 cycles; 80% DOD ≥6000 cycles; 50% DOD ≥8000 cycles
Certifications: UL1642, UL2054, UL1973, IEC62133, UN38.3, RoHS, REACH, etc.
The 50C high discharge rate LiFePO4 battery is featuring premium electrode materials and a highly safe structural design, ensuring reliability in both high-rate discharge and overall performance.
As a manufacturer specializing in LiFePO4 batteries, PLB Battery is dedicated to the R&D and manufacturing of 26650 cells and provides customized battery PACK services. We focus on the medium and small-sized energy storage and power markets, offering integrated lithium battery system solutions to enhance the competitiveness of your products.
PLB Battery is a direct manufacturer with its own factory, boasting strong R&D and production capabilities, ensuring high-quality battery products, and all product data being accurate and reliable. We implement strict quality control measures, ensuring that each cell undergoes rigorous testing and validation before leaving the factory. Our battery products have received various international certifications, ensuring customer confidence.
In addition to high-quality products, we offer a comprehensive service system, quickly responding to customer inquiries and providing timely solutions. We are dedicated to delivering excellent products and services and look forward to collaborating with you.
